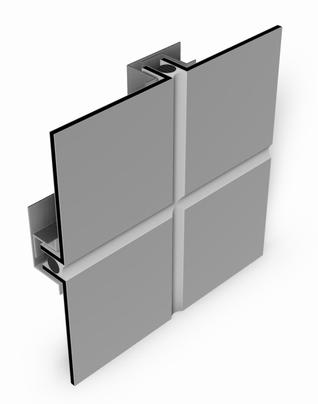

ASM W-S Panel

The ASM W-S (Wet-Seal) Composite Panel features:

  • Weather-sealed panel joints utilizing high quality silicone sealant with backer rod
  • 4mm aluminum composite material (Most common)
  • 1/2” panel joints typical
  • 1-1/2” panel depth (2-1/4” total with hat channel) Hat channel required at certain conditions
  • Fabricated on a CNC machine using the route and returned method
  • Radiused and vented options
  • Panel widths can vary and are available up to 5’ max
  • Panel lengths can vary and are available up to 16’ max
  • We work with the top composite material manufacturers for a wide range of color and finish selections


 Please contact us for more information regarding pricing, installation, detailing, or for any questions you may have.
