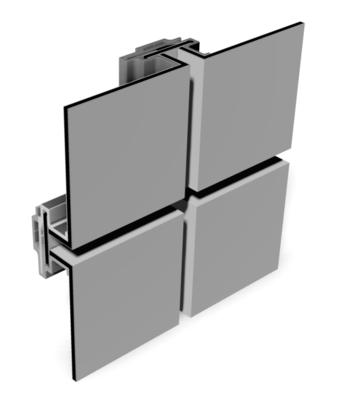

ASM D-J Panel

The ASM D-J (Dry-Joint) Composite Panel features:

  • Dry-Joint rainscreen system
  • 4mm aluminum composite material (Most Common)
  • Available joint sizes from 1/2” to 2”
  • 1-3/4” panel depth (2-1/2” total with hat channel) Hat channel required at certain conditions
  • Fabricated on a CNC machine using the route and returned method
  • Radiused and vented options
  • Panel widths can vary and are available up to 5’ max
  • Panel lengths can vary and are available up to 16’ max
  • We work with the top composite material manufacturers for a wide range of color and finish selections
  • Tested in accordance with ASTM E 283-99, E 330-97e1, E 331-00 for air infiltration, water resistance, and structural performance



Please contact us for more information regarding pricing, installation, detailing, or for any questions you may have.
